Fracture Types

Bone Model Training

Distal Radius Fractures

• Bone models with soft tissue illustrate not only skeletal injury but also possible soft tissue injuries such as ligament and fibrocartilage damage.

• Bone models help orthopaedic trainees perfect closed reduction percutaneous pinning (CRPP) techniques, which have a very high chance of success in treating distal radius fractures if properly executed.

• Medical students are trained in the do’s and don’ts of proper immobilization of the wrist ex. Avoid ulnar deviation and excessive flexion.

• Models provide students with hands-on training with volar and dorsal approaches in open reduction and internal fixation (ORIF) techniques.

• Models aid visualization, especially concerning essential nerves and tendons such as the EPL tendon, ulnar nerve, superficial radial nerve, and others.

Midforearm Fractures

• Operative techniques for shaft fractures of the radius or ulna are critical to ensure the integrity of anatomic relationships.


• Poor technique is almost certain to result in delayed union and bowing deformities. Bone models help students rationalize the proper surgical treatment of midforearm fractures.

• Models help students practice ORIF methods commonly used to treat shaft fractures of the radius and ulna. Techniques that can be practiced on appropriate bone models (see next section) include compression plating, ORIF with bone grafting, and IM nailing.

• Full arm models help students practice the application of a functional brace or Muenster cast to control the rotation of the forearm.

• Special bone models assist students in hands-on training of ulnar nail insertion, proper plate fixation, bridge plating, and bone grafts.

• Bone models allow students to build dexterity in handling instruments like lobster claw reduction clamps. Reduction techniques such as the application of longitudinal traction and rotation using these instruments can be repetitively practiced.

Radial Head Fractures

• Radial head fractures are among the most common elbow fractures resulting from falls on an outstretched hand (FOOSH). Again, models help students explore bone fractures and related injuries to surrounding soft tissue, such as lateral collateral ligament and medial collateral injury. Associated skeletal injuries such as elbow dislocation and carpal fractures can also be demonstrated on bone models with soft tissue.

• Optimal areas for hardware placement on the radial head can be emphasized with detailed anatomical models.

• Specifically designed bone models help students practice ORIF techniques such as partial excision of bone fragments, complete radial head excision, athroplasty of displaced comminuted fractures, and special nail reduction.

• Surgical approaches to the radial head (Kocher vs Kaplan) can be practiced on appropriate bone models.  Visualization advantages of both approaches and respective risks to nearby nerves and ligaments can be emphasized.

• Fixation techniques, including implants and plate placement, can be practiced hands-on on unique bone models.

Growth Plate/Physeal Fractures

• Physeal considerations for pediatric patients undergoing surgical treatment can be excellently demonstrated by bone models. For example, pediatric bone is more elastic and exhibits unique fracture patterns such as buckle and greenstick fractures. Open physes also possess greater potential for remodeling bone deformities. Bone models can illustrate such points to establish treatment principles in pediatric surgery.

• Detailed bone models demonstrate physeal arrest and related complications, including ulnocarpal impaction, DRUJ injury, and TFCC injuries.

• Bone models emphasize the importance of proper reduction techniques to avoid growth arrests and deformities in young patients. Instructors may use bone models to demonstrate gentle but firm pressure best used to reduce physeal fractures. Instructors may further emphasize the importance of limiting reduction treatment to one attempt (preferably within a week of the injury) to avoid the risk of growth arrest.

Radius and Ulna Bone Model with Soft Tissue

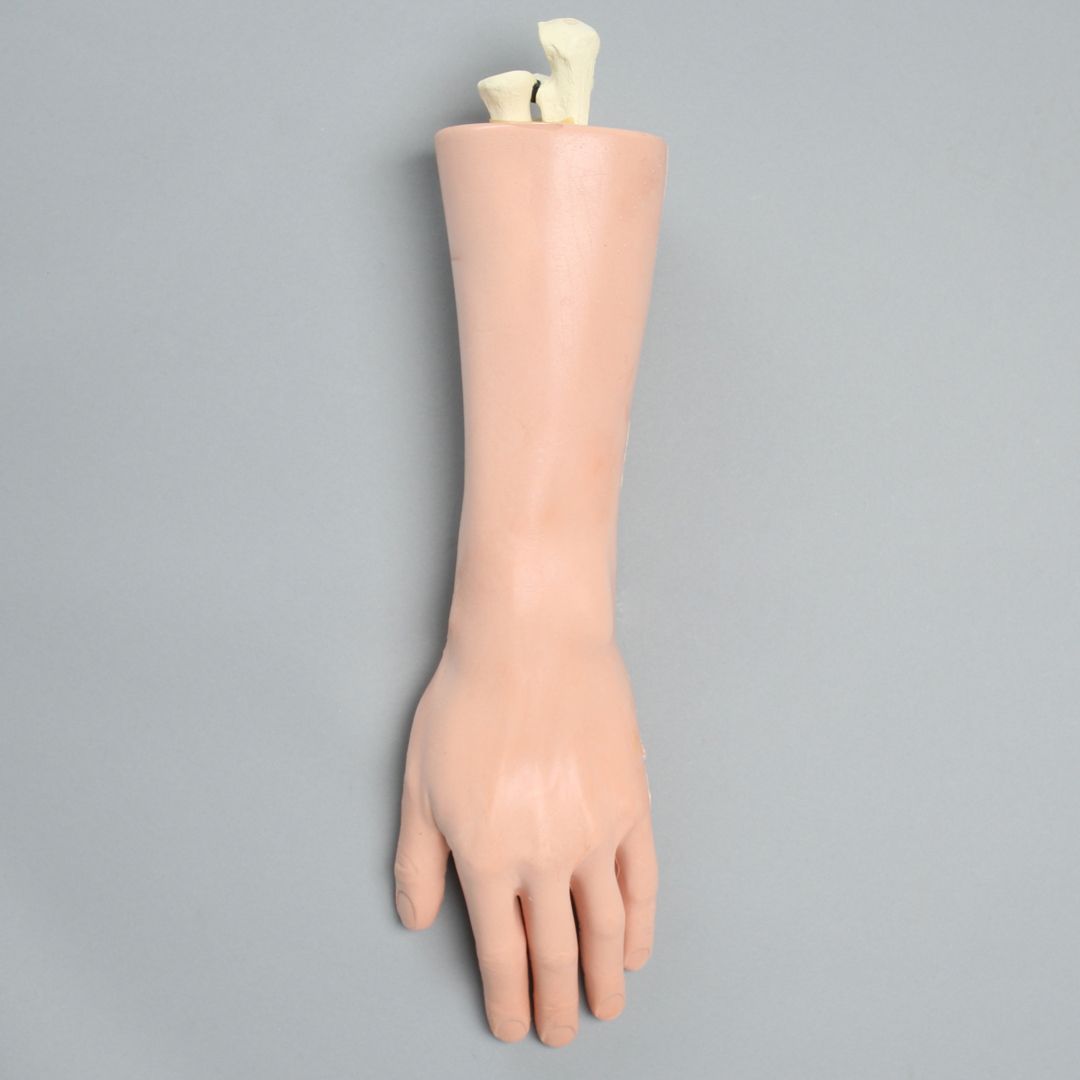

Hand and Wrist with Midshaft Fractures, Encased

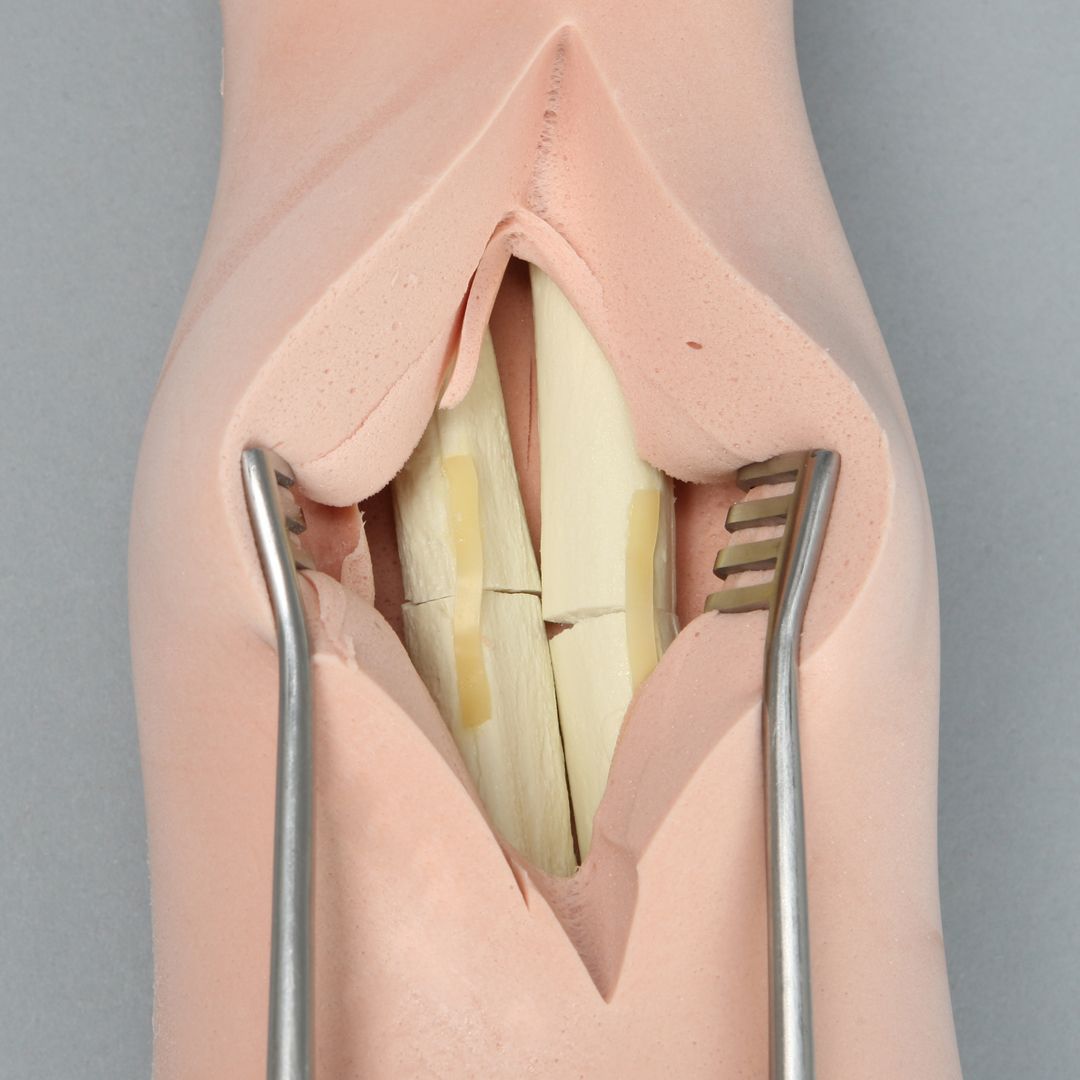

Foam-based bone models are conducive to drilling, screwing, and plate fixation techniques.

Hand/wrist Model

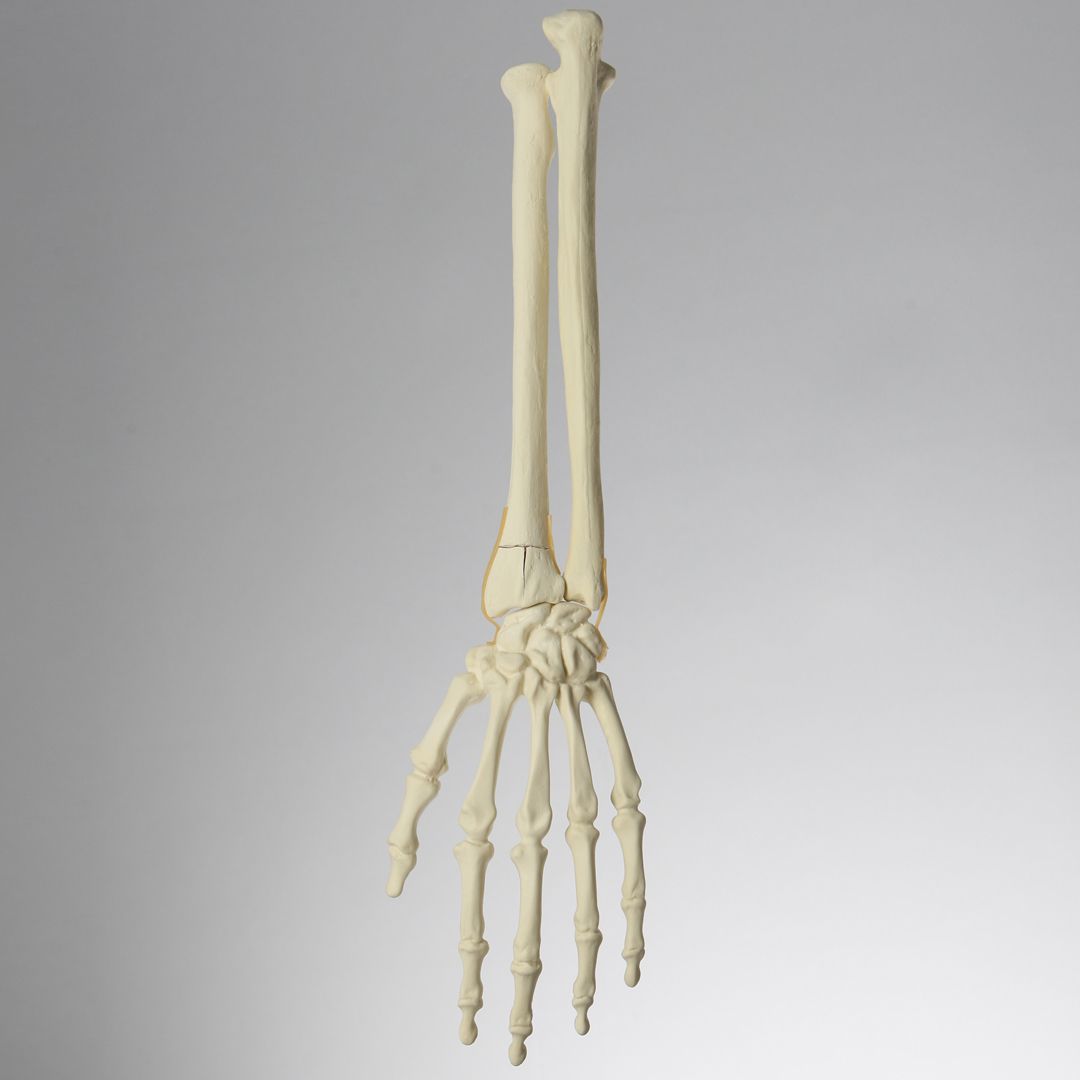

Hand and Wrist with Three-Part Fracture, Foam Cortical

Bone models can also depict single and multiple fractures to further illustrate common injuries. Again, foam models offer excellent hands-on training for treating bone fractures such as plate fixation, nailing, drilling, and other surgical techniques.

 Single Fracture

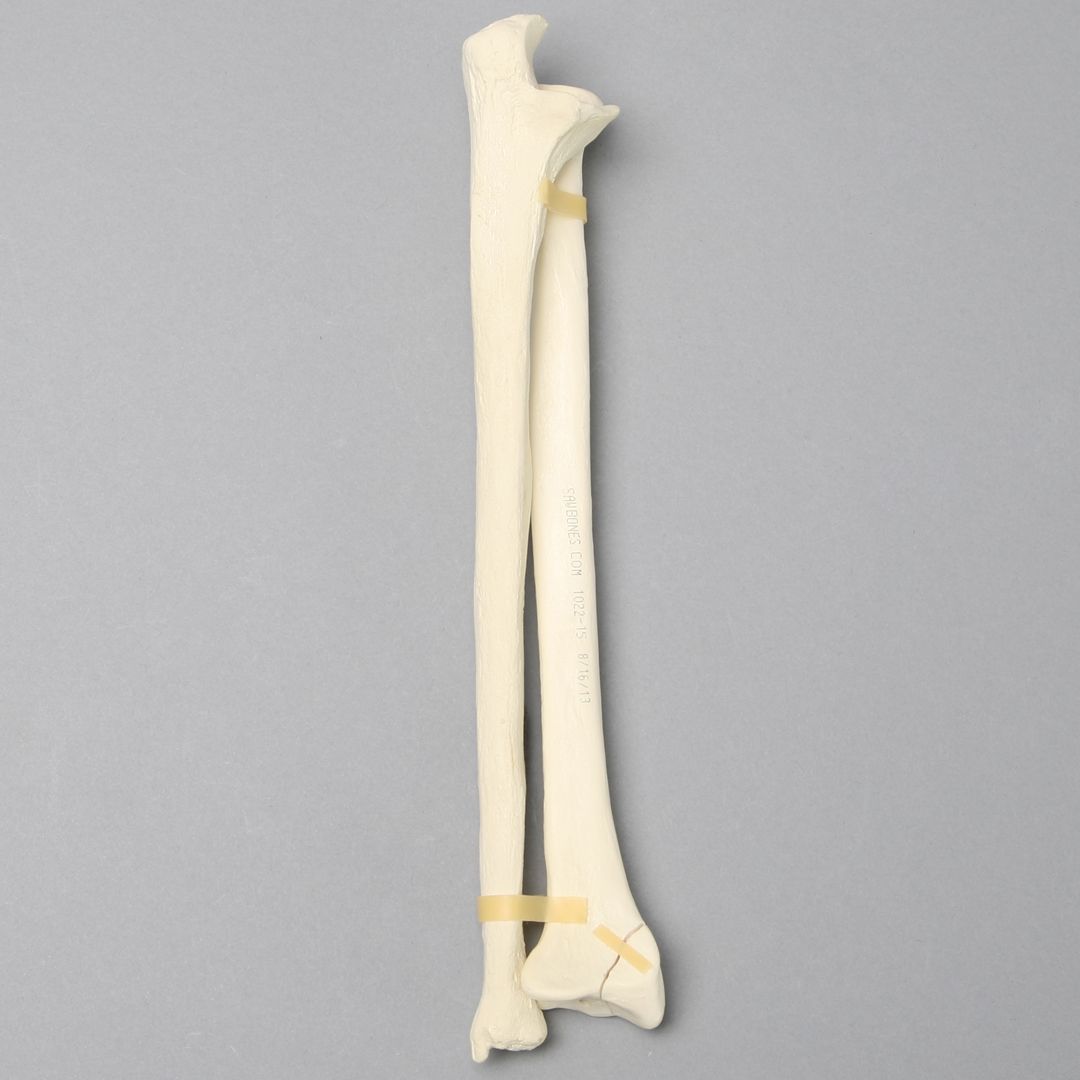

Ulna and Radius with Styloid Fracture, Foam Cortical

Multiple Fractures

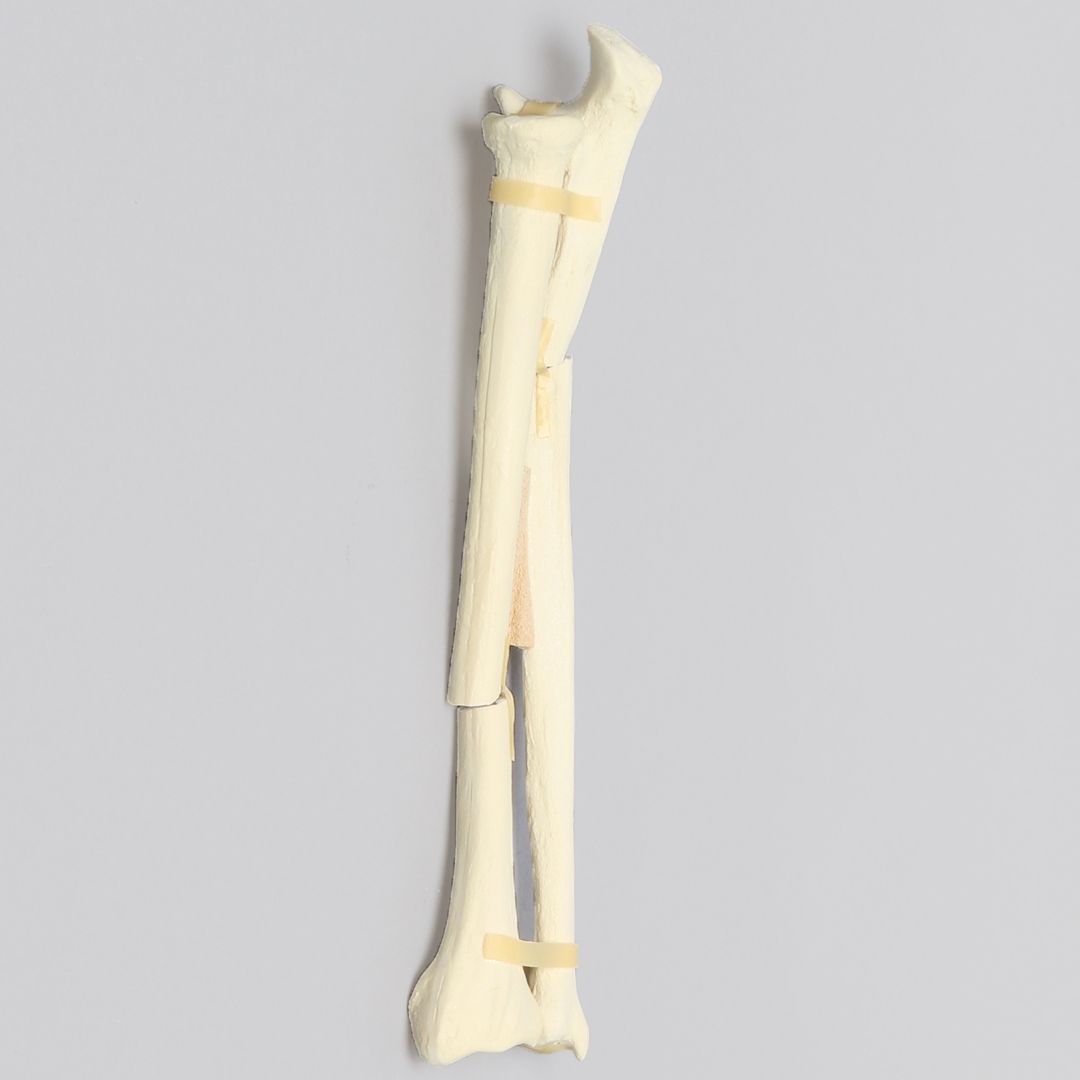

Ulna and Radius with Oblique and Transverse Fractures, Foam Cortical
